High-stability Triangular Rubber Tracks
Dual Lifting Electric Cylinders
Dual-Guide Rail Track

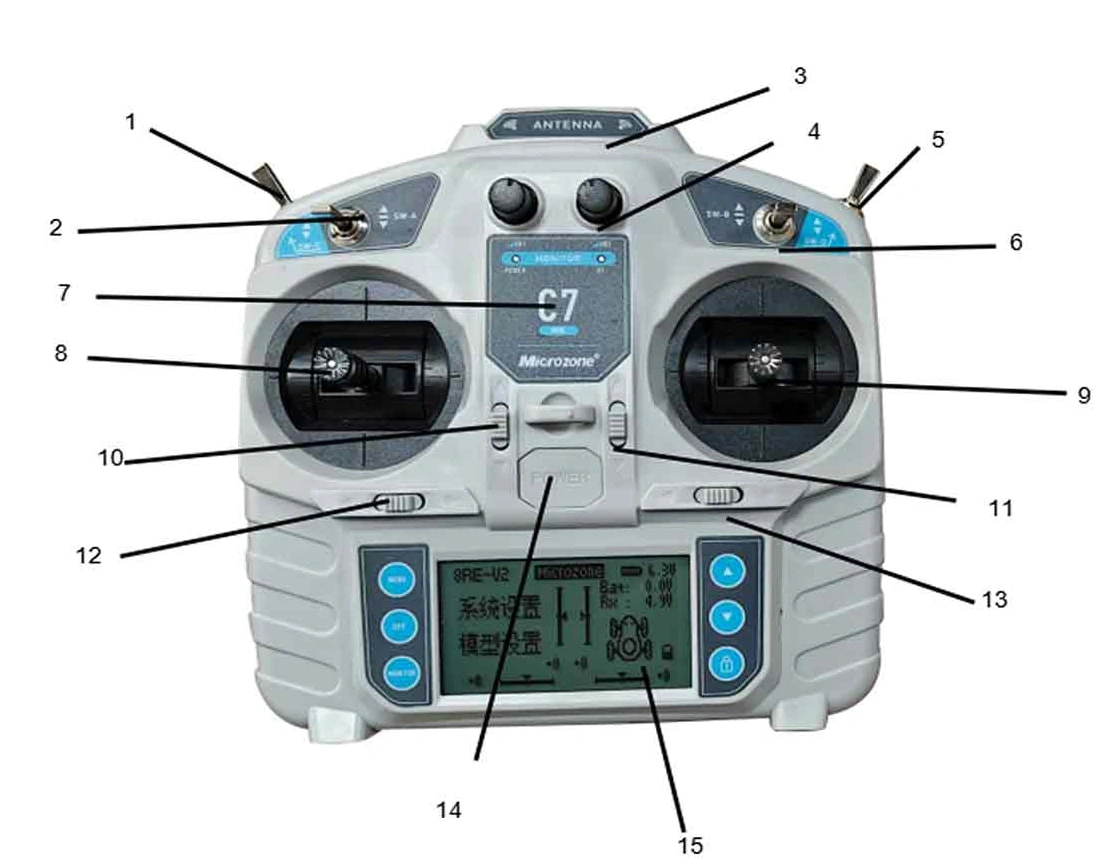

1.High/low speed
2.Move the blade up and down
3.Antenna
4.Channel 1
5.Constant speed
6.Mow the lawn
7.Indicator light
8.Forward and backward
9.Rotate left and right
10.Channel 2
11.Channel 3
12.Channel 4
13.Channel 5
14.On-off switch
15.Display screen

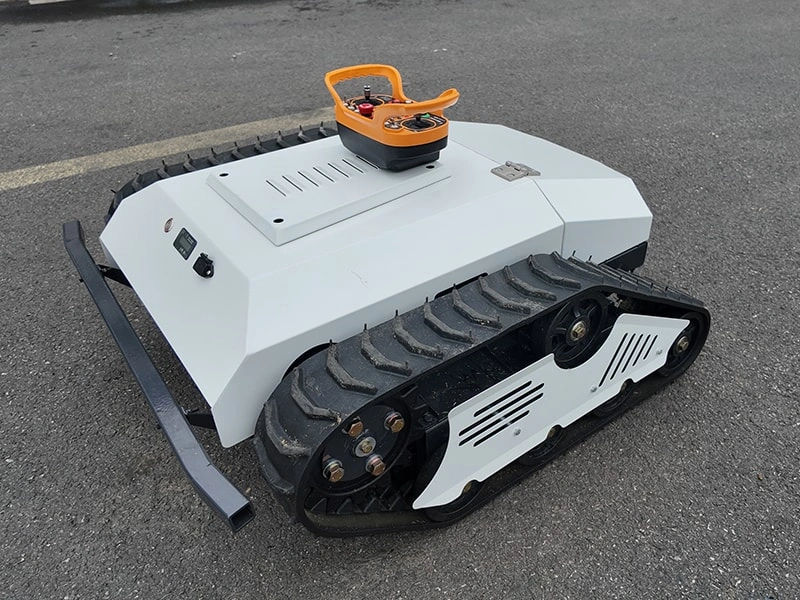

STANDARD CONFIGURATION
Remote Control/Dual-Guide Rail Track/Dual Lifting Electric Cylinders
MACHINE ADVANTAGES
Can work on large-angle slopes for a long time,Lithium battery, maintenance-free,No need for regular lubricating oil replacement,Environmentally friendly,Low noise
| Model | 550E |
|---|---|
| Basic performance parameters | |
| Overall Machine Weight | 110kg |
| Overall Machine Length | 1000mm |
| Overall Machine Width | 850mm |
| Overall Machine Height | 440mm |
| Maximum Ground Clearance | 80mm |
| Maximum Blade Height | 67mm |
| Travel Speed | 0-5km/h |
| Minimum Height | 40mm |
| Cutting Platform Lifting Stroke | 30mm |
| Track Ground Contact Length | 550mm |
| Dimensions | |
| Overall dimensions | 2138*1050*1300mm |
| Push Shovel Length | 1100mm |
| Anti-Collision Beam Length | 1000mm |
| Track Model | 120*50*40 |
| Motor | |
| Working Motor | 2000w |
| Travel Motor | 350w*2 |
| Battery | 42AH*48V |
| Backup Battery | Quick Change |
| Charging Duration | 7H |
| Quick Charging Duration | 5H |
| Remote Control Distance | 150m |
Yes, we provide complete production and supply-chain control for mini excavators, skid steers, and mowers, ensuring stable quality and delivery.
Yes. We provide standard spare parts packages and long-term supply support.
We only cooperate with high-quality raw material suppliers who have strength and reputation.
During the production process, we have three inspection stages: self-inspection, mutual inspection, and workshop inspection. Only qualified products can move on to the next step.
Before delivery, our inspection team will check everything against the delivery list to ensure that we send you every items, allowing you to install it well locally.
Usually 3-15 days after receiving your payment.
We have two payment terms.
1)30% advance payment before producing by T/T.and 70% balance by T/T before shipping.
2)100% irrevocable L/C
Please send us your requirements, and we will provide you with a quote accordingly within 2 work days. Alternatively, we need to confirm several questions with you firstly and then prepare a detailed quotation list for you in a timely manner.
We are both the producer and the exporter — ensuring competitive pricing and stable quality.
Equipped with modern machines and testing systems for precision manufacturing.
Full range of mini excavators, skid steers, and attachments for multiple industries.
Every machine is tested before shipment under real working conditions.
Years of experience serving Europe, North America, and Belt and Road countries.
Fast response and professional after-sales support in multiple languages.
OEM & ODM support for branding and specific customer requirements.
Focus on energy saving and optimized hydraulic systems.
