It is used to restore the ground, break the concrete, and for cable casting, water pipe laying, planting, cleaning of river/ditch and construction project. It has several functions: excavation,breaking, ditch cleaning,drilling, bulldozing and ect.
Mounted Safety Lock

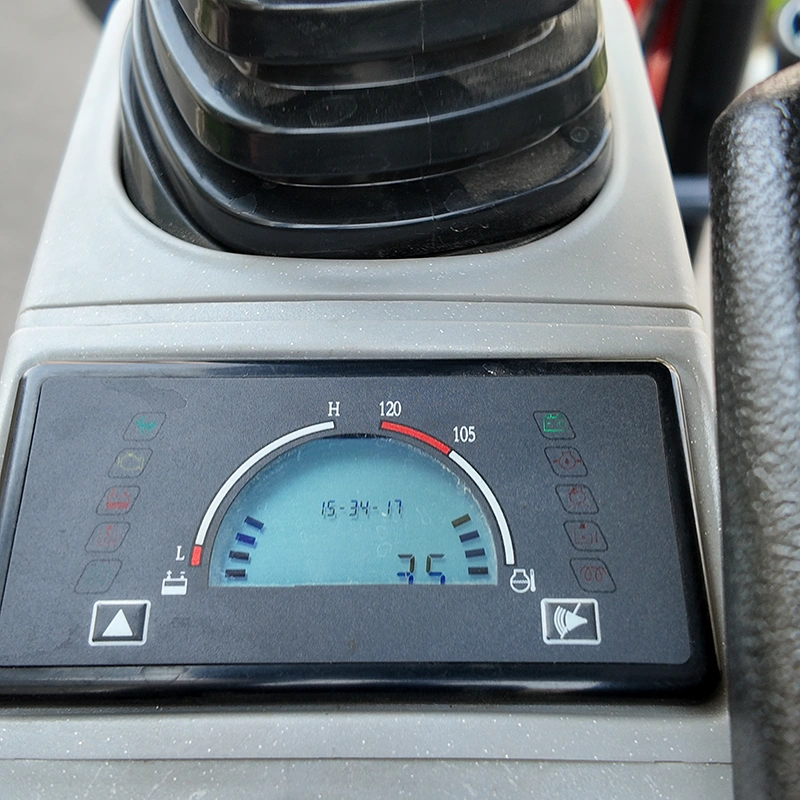

LED LCD
Foot-operated Crusher
Compact and flexible, convenient for small terrain and narrow space operations.
Simple and convenient operation,convenient transportation.
Use thicker high-quality steel,apply plastic molding process, prevent rust and anti-corrosion.
The use of internationally renowned brand reducers provides smooth operation and high reliability.
The 360-degree body rotates freely, and the smart body facilitates outdoor work.
STANDARD CONFIGURATION
KOOP192F engine/limported oil cylinders and oil pipes with built-in NOK sealing ring/twin gear pump/-adjustable bulldozer/wear-resistant engineering rubber track/ Adjustabledriving seat/standard bucket
OPTIONAL CONFIGURATION
Hammer / Ripper / Log grapple / Rake / Auger drill / Large bucket / Mud bucket
Applicable to indoor demolition,toilet upgrading,engineering forcible entry,excavate barren hills,small earthwork, municipal projects,break concrete,dredging river and other working environment.
| MODEL | 12Q | |
|---|---|---|
| WEIGHT | ||
| Operating weight | 1250kg | |
| SIZE | ||
| Total length | 2981mm | |
| Total width | 930-1105mm | |
| Total height | 2287mm | |
| Max.digging radius | 3057mm | |
| Max.digging depth | 1717mm | |
| Max.digging height | 2717mm | |
| Counterweight ground clearance | 1866mm | |
| Max.digging force | 9KN | |
| DRIVE | ||
| Engine brand | KOOP/B&S | |
| Engine model | 192F/XR13.5 | |
| Maximum power | 7.6kw(10HP)/9.92kw(13.5HP) | |
| WALKING CHARACTERISTICS | ||
| Walking speed | 0-1.5km/h | |
| Climbing angle | 30° | |
Yes, we provide complete production and supply-chain control for mini excavators, skid steers, and mowers, ensuring stable quality and delivery.
Yes. We provide standard spare parts packages and long-term supply support.
We only cooperate with high-quality raw material suppliers who have strength and reputation.
During the production process, we have three inspection stages: self-inspection, mutual inspection, and workshop inspection. Only qualified products can move on to the next step.
Before delivery, our inspection team will check everything against the delivery list to ensure that we send you every items, allowing you to install it well locally.
Usually 3-15 days after receiving your payment.
We have two payment terms.
1)30% advance payment before producing by T/T.and 70% balance by T/T before shipping.
2)100% irrevocable L/C
Please send us your requirements, and we will provide you with a quote accordingly within 2 work days. Alternatively, we need to confirm several questions with you firstly and then prepare a detailed quotation list for you in a timely manner.
We are both the producer and the exporter — ensuring competitive pricing and stable quality.
Equipped with modern machines and testing systems for precision manufacturing.
Full range of mini excavators, skid steers, and attachments for multiple industries.
Every machine is tested before shipment under real working conditions.
Years of experience serving Europe, North America, and Belt and Road countries.
Fast response and professional after-sales support in multiple languages.
OEM & ODM support for branding and specific customer requirements.
Focus on energy saving and optimized hydraulic systems.
