It is mainly used in situations where theworking site is small, the ground is uneven,and the work content changes frequently.It is suitable for infrastructure construction,industrial applications, dock loading andunloading, urban streets, residential build-ings, barns, livestock sheds, airport runwaysetc, It can also be used as auxiliary equip-ment for large-scale engineering constructionmachinery.

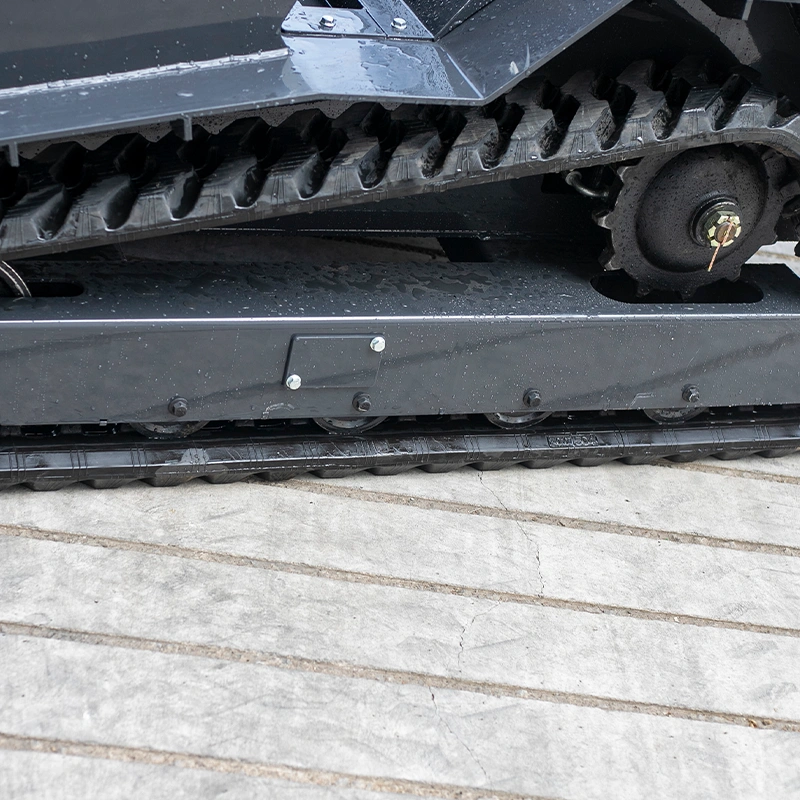

High-stability Triangular Rubber Tracks
Ergonomic seat

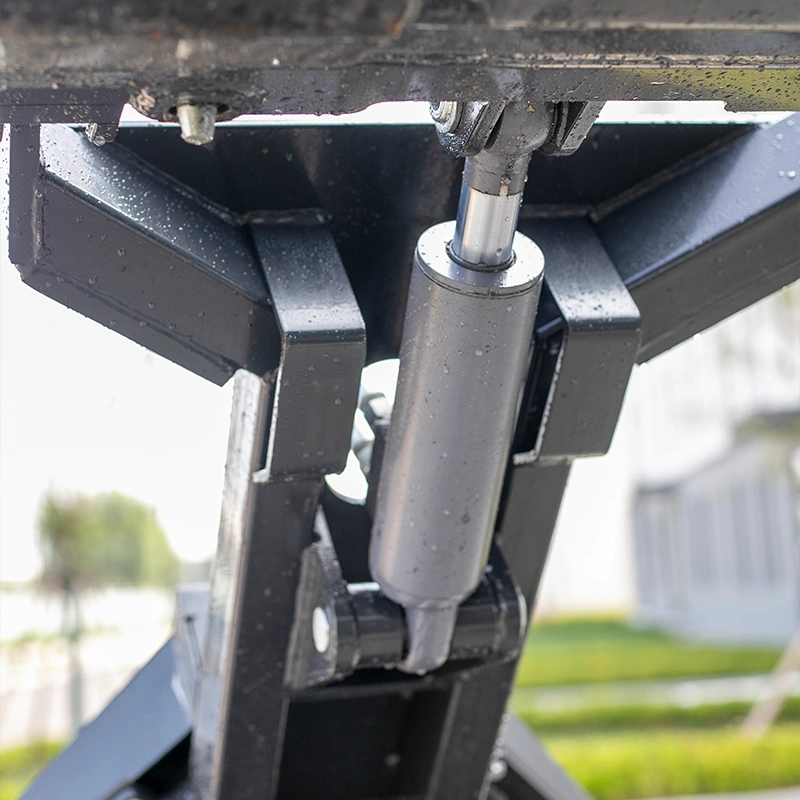

One-piece reinforced boom
| MODEL | JS-T390 |
|---|---|
| Basic performance parameters | |
| Bucket width | 1050mm |
| Ground clearance | 219mm |
| Climbing ability | 25° |
| Max loading height | 1830mm |
| Max dumping height | 1404mm |
| Max operating height | 2488mm |
| Minimum height | 1300mm |
| Bucket capacity | 0.1m³ |
| Rated load | 250kg |
| Maximum load | 300kg |
| Operating weight | 1070kg |
| Maximum breakout force | 3.5KN |
| Travel speed | 0-5km/h |
| Vehicle width | 955mm |
| Rated pressure | 16Mpa |
| Height to bucket pin | 1899mm |
| Max height bucket dump angle | 63° |
| Departure angle | 40° |
| Dumping distance | 526mm |
| Wheelbase | 1300mm |
| Size | |
| Dimensions | 2282*1050*1300mm |
| Length including bucket | 2282mm |
| Length excluding bucket | 1880mm |
| Tire model | 180*72*45 |
| Engine | |
| Brand | KOOP/Rato/B&S |
| Model | 192FH/R420D/XR13.5 |
| Rated power | 7.6(7)/7.9/9.92kw |
| Cylinder | 1 |
| Intake method | Natural inhalation |
| Emission standard | EPA/ERUO5 |
| Fuel tank capacity | 5L |
Yes, we provide complete production and supply-chain control for mini excavators, skid steers, and mowers, ensuring stable quality and delivery.
Yes. We provide standard spare parts packages and long-term supply support.
We only cooperate with high-quality raw material suppliers who have strength and reputation.
During the production process, we have three inspection stages: self-inspection, mutual inspection, and workshop inspection. Only qualified products can move on to the next step.
Before delivery, our inspection team will check everything against the delivery list to ensure that we send you every items, allowing you to install it well locally.
Usually 3-15 days after receiving your payment.
We have two payment terms.
1)30% advance payment before producing by T/T.and 70% balance by T/T before shipping.
2)100% irrevocable L/C
Please send us your requirements, and we will provide you with a quote accordingly within 2 work days. Alternatively, we need to confirm several questions with you firstly and then prepare a detailed quotation list for you in a timely manner.
We are both the producer and the exporter — ensuring competitive pricing and stable quality.
Equipped with modern machines and testing systems for precision manufacturing.
Full range of mini excavators, skid steers, and attachments for multiple industries.
Every machine is tested before shipment under real working conditions.
Years of experience serving Europe, North America, and Belt and Road countries.
Fast response and professional after-sales support in multiple languages.
OEM & ODM support for branding and specific customer requirements.
Focus on energy saving and optimized hydraulic systems.
