It is mainly used in situations where the working site is small,the ground is uneven, and the work content changes frequently, It is suitable for inrastructure construction,industrial applications, dock loading and unloading, urban streets,residential builings, barns, livestock sheds, airport runways, etc. It can also be used as auxiliary equipment for large-scale engineering construction machinery.
High-stability Triangular Rubber Tracks

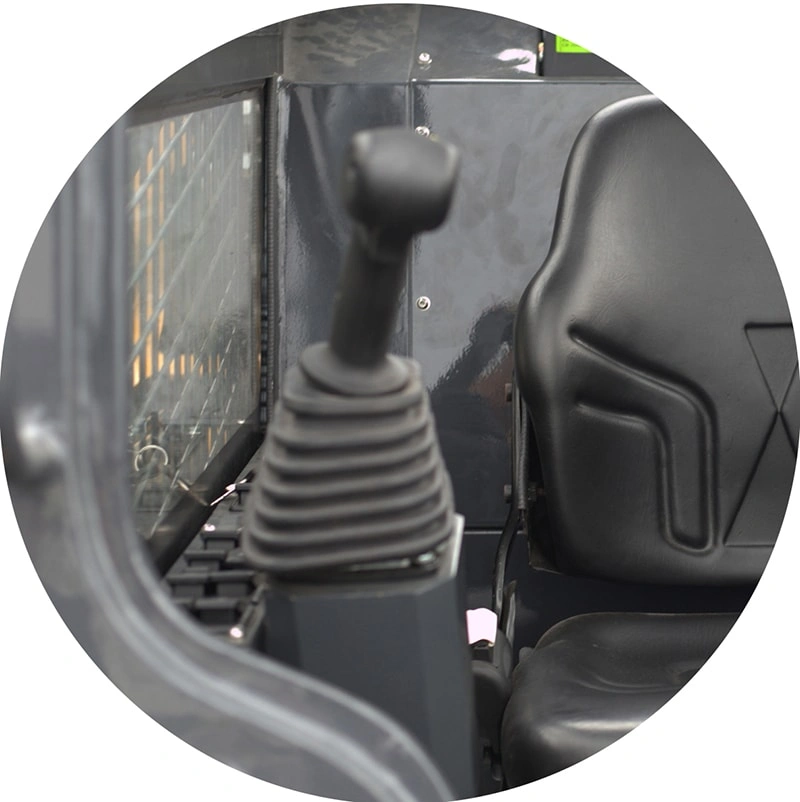

Hydraulic pilot operation

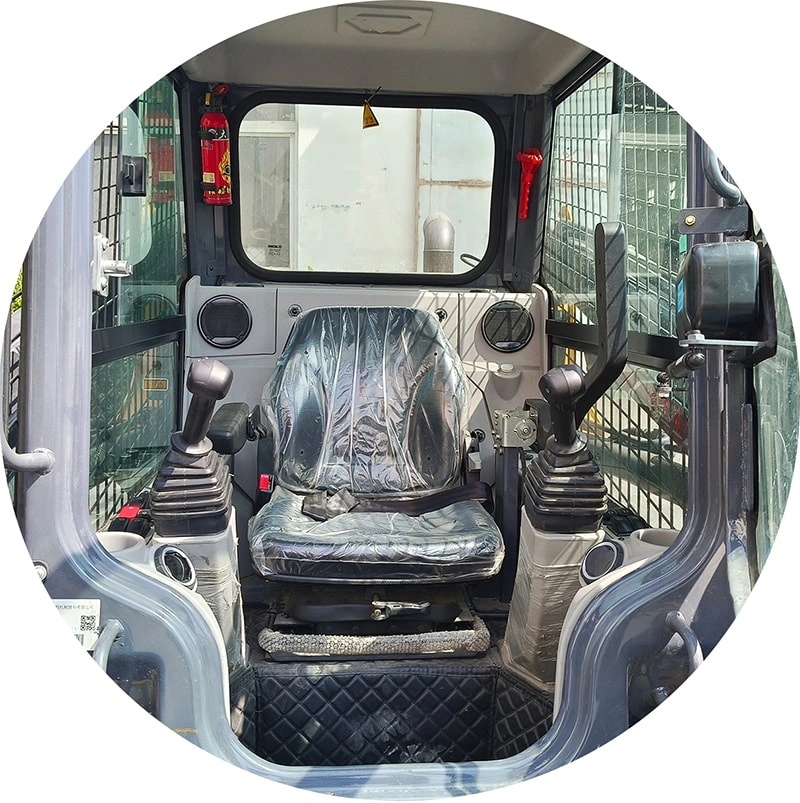

Air-conditioned cab
Compact and flexible, convenient for small terrain and narrow space operations.
Simple and convenient operation, convenient transportation.
Use thicker high-quality steel, apply plastic molding process, prevent rust and anti-corrosion.
The 360-degree body rotates freely, and the smart body facilitates outdoor work.
| Model | S55 |
|---|---|
| Basic performance parameters | |
| Operating weight | 3845kg |
| Bucket capacity | 0.4m³ |
| Climbing ability | 25° |
| Maximum breakout force | 25KN |
| Rated load | 890kg |
| Maximum load | ≥1780kg |
| Travel speed | 0-12km/h |
| Hydraulic flow rate | 55L/Min |
| Hydraulic pressure | 21Mpa |
| Bucket width | 1800±2%mm |
| Max loading height | 2846±5%mm |
| Max dumping height | 2384±5%mm |
| Max operating height | 3790mm |
| Height to bucket pin | 3020mm |
| Max height bucket dump angle | 63° |
| Min height | 2095±5%mm |
| Tail length | 1160±5%mm |
| Ground clearance | 185±2%mm |
| Dumping distance | 520±1%mm |
| Wheelbase | 1200mm |
| Dimensions | |
| Overall dimensions | 3450*1800*2095mm |
| Length including bucket | 3450mm |
| Length excluding bucket | 2700mm |
| Tire model | 10-10.5 |
| Engine | |
| Brand | Yanmar/Cummins |
| Model | 4TNV80/HFC4DA1-2C3 |
| Rated power | 35.5/36.8kw |
| Cylinder | 4 |
| Intake method | Natural inhalation |
| Emission standard | EPA/ERUO5 |
| Fuel tank capacity | 80L |
Yes, we provide complete production and supply-chain control for mini excavators, skid steers, and mowers, ensuring stable quality and delivery.
Yes. We provide standard spare parts packages and long-term supply support.
We only cooperate with high-quality raw material suppliers who have strength and reputation.
During the production process, we have three inspection stages: self-inspection, mutual inspection, and workshop inspection. Only qualified products can move on to the next step.
Before delivery, our inspection team will check everything against the delivery list to ensure that we send you every items, allowing you to install it well locally.
Usually 3-15 days after receiving your payment.
We have two payment terms.
1)30% advance payment before producing by T/T.and 70% balance by T/T before shipping.
2)100% irrevocable L/C
Please send us your requirements, and we will provide you with a quote accordingly within 2 work days. Alternatively, we need to confirm several questions with you firstly and then prepare a detailed quotation list for you in a timely manner.
We are both the producer and the exporter — ensuring competitive pricing and stable quality.
Equipped with modern machines and testing systems for precision manufacturing.
Full range of mini excavators, skid steers, and attachments for multiple industries.
Every machine is tested before shipment under real working conditions.
Years of experience serving Europe, North America, and Belt and Road countries.
Fast response and professional after-sales support in multiple languages.
OEM & ODM support for branding and specific customer requirements.
Focus on energy saving and optimized hydraulic systems.
